GFP 563TH-4RS Pressure Sensitive Cold Laminator – Top Heat Assist
$11,860.00
GFP 563TH-4RS can answer the question of, what is the best way to make your production even better? Shorten film loading time? Make fewer film changes? Increase throughput speed? Increase bi-directional flexibility? GFP decided to do all of the above, and as a result, the GFP 563TH-4RS was born. This top-of-the-line machine saves time, effort, and money on applications requiring over-lamination, mounting, or the pre-coating of boards.
Price includes installation and training.

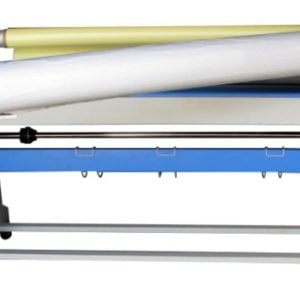

- Front and Rear Swing-Out Film Shafts: For faster and easier loading
- 300′ Roll Capacity: Fewer supply changes needed
- Bi-Directional Flexibility: Quicker application changes
- Dual Tension Control: Adjust tension on both film rolls
- Media Alignment Disks: Prevent supply rolls from telescoping
- Foot Pedal: For hands-free motor operation
- Swing-Up Feed Table: Conveniently folds away when not in use
- Photoelectric Eye: Prevents contact with rollers when engaged
- Machine Stand with Casters: For easy portability and secure placement
- Rear Rewind with Slitters: Included with package
- Rewind Tube: Included with package
- Safety Approval: cTUVus
- PRICE INCLUDES $1495 ON-SITE INSTALLATION & TRAINING FEE
Specifications:
- Laminating Width: 63″
- Roller Diameter: 41⁄2“
- Max Temperature: 140° F
- Speed: 0-20 feet per minute
- Max Roll Diameter: 8″ OD (top) / 16″ OD (bottom)
- Power Supply: 110 V
- Table Height Output: 38″
- Variable Roller Gap: Up to 1″
- Film Chucks: 3″ core
- Weight: 491 lbs.
- Shipping Weight: 792 lbs.
This item requires shipment via truck.
